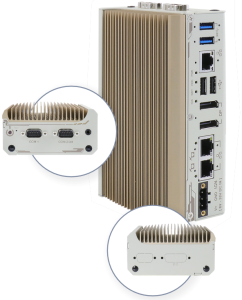

The F-200 combines a compact form factor with the
power of 2 ports of POE.
Built for ultimate convenience for deployments.

Features

  • Real-time low bitrate video
  • Full, high-quality local recording
  • Multiple areas of interest
  • Total Recall™ image enhance
  • Video, audio, GPS and data streams
  • Secure encrypted communications
  • Multiple simultaneous output streams

Mission Critical Video Streaming

Running Videosoft’s Edge Gateway software (see separate datasheet), the F-200 improves real-time situational awareness by providing multiple simultaneous streams to command centres and operatives in the field using efficient bandwidth management.

Industry experts in ultra-low bandwidth video compression and transmission of live video, audio and data streams

Inside the F-200, Videosoft’s efficient and adaptive video compression techniques and real-time transmission protocols ensure reliable and low latency delivery of streams – even across ultra-low bitrate, unreliable or congested networks, including mobile and satellite. Streams and data from the F-200 are viewed and managed remotely by Videosoft apps running on Windows, Android and IOS. Streams can be fed to industry-standard VMS solutions, using Onvif and RTSP, to be incorporated as part of a wider management platform.

Streaming Capabilities
Camera Inputs 2 direct IP, up to 4 with USB or switch
Stream Outputs 1 or 2 simultaneous stream output options
Encoding 4kbps low-res to 3Mbps high-res 1080p 30fps transcoded or unlimited Native mode
Mechanical & Environmental
Dimensions 153mm x 108mm x 56mm
Operating Temperature -25°C ~ 70°C
Power Input 1x 3-pin pluggable terminal block for 8-35V DC input w/ ignition power control
Weight 1.06kg
Consumption 50W
Total PoE budget MIL-STD-810G , CE, FCC
Interface & Connectors
Ethernet 2x RJ45 PoE
1x RJ45
USB 2x USB 3.1 ports
2x USB 2.0 ports
Recording Internal 1TB (2TB optional), or external storage
Modem 4G LTE cellular modem w/GPS, internal full size SIM slot
Antennas 3x SMA Female – LTE Main, LTE Aux & GPS
Accessories
Included 3x Multiband Antennas, PSU connector, DIN-rail & wall-mount brackets
