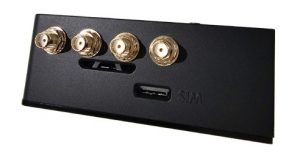

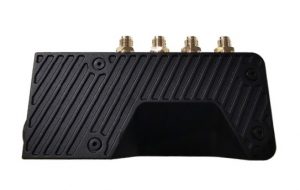

The FireBird F-100 5G™ gateway is designed specifically for video streaming applications where size and weight are of utmost importance. Measuring only 93.30mm long x 49.50mm wide x 35.00mm high, the FireBird F-100 5G™ is one of the best form factors for covert surveillance or for integrating into small spaces.

Features

  • Real-time low bitrate video
  • Full, high-quality local recording
  • Multiple areas of interest
  • Total Recall™ image enhance
  • Video, audio, GPS and data streams
  • Secure encrypted communications
  • Multiple simultaneous output streams

Mission Critical Video Streaming

Running Videosoft’s Edge Gateway software (see separate datasheet), the FireBird F-100 5G™ improves real-time situational awareness by providing multiple simultaneous streams to command centres and operatives in the field using efficient bandwidth management.

Industry experts in ultra-low bandwidth video compression and transmission of live video, audio and data streams

Inside the FireBird F-100 5G™, Videosoft’s efficient and adaptive video compression techniques and real-time transmission protocols ensure reliable and low latency delivery of streams – even across ultra-low bitrate, unreliable or congested networks, including mobile and satellite.

Streams and data from the FireBird F-100 5G™ are viewed and managed remotely by Videosoft apps running on Windows, Android and IOS. Streams can be fed to industry-standard VMS solutions, using Onvif and RTSP, to be incorporated as part of a wider management platform.

Streaming Capabilities
Camera Inputs 1 ethernet, 1 USB-C (ethernet adapter compatible), up to 4 with switch
Stream Outputs Up to 2 simultaneous stream output in full HD
Encoding 1kbps low-res to 3Mbps full HD transcoding and Native mode
Mechanical & Environmental
Dimensions 93.30mm (L), 49.50mm (W), 35mm (D)
Operating Temperature -40C to +85C
Power Input Power Input 7-14 V
Power Consumption ~4W
Video in IP Camera over GbE
USB Camera over USB 3.0
Network GbE (RJ45)
4/5G Cellular
Storage Media 32GB EMMC
Up to 1 TB Micro SD
Total PoE budget N/A
Interface & Connectors
Ethernet 1x RJ45
USB 1x USB-OTG (Type C)
Recording Micro SD card slot (up to 1Tb) or external storage
Modem 5G LTE cellular modem w/GPS Micro SIM Push-Push slot
Antennas 4x SMA Female
Accessories
Included 4x Multiband Antennas, Power connector and lead
